Physio-Control Lifepak CR2 Electrodes

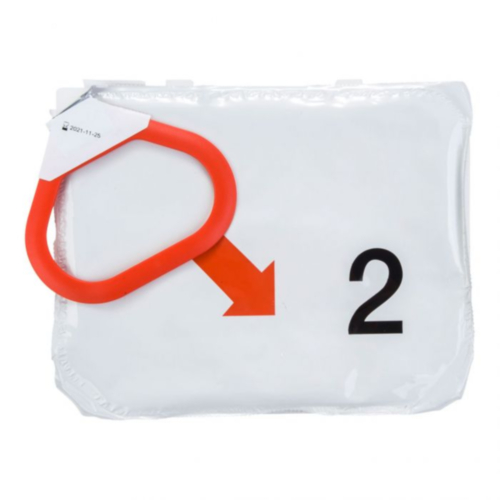

Physio-Control Lifepak CR2 electrode pads

The CR2 electrodes can be pre-connected to the Lifepak CR2 defibrillator, saving valuable time during a deployment. When the lid of the AED is opened, the electrodes are immediately available. The electrodes can be used on children as well as adults, by pressing the child buttong on the defibrillator.

Shelf life of the Lifepak CR2 defibrillation electrodes

The shelf-life of the electrodes is Ca. 4 years and are for one-time use only. Once the electrodes reach their expiry date, they must be replaced. The conductive layer of gel dries out over time, or if the packaging has been opened, therefore electrode pads that have exceed their expiry date may not adhere to the patient in the event of an emergency, meaning that the AED will not issue a shock.

Features

• Can be pre-connected
• Self-adhesive
• Pacemaker detection
• Long 1.1m leads

Specifications

• Store at temperatures between 15 ° C and 35 ° C
• Operating temperature between 0 ° C and 50 ° C

Child Application

The Physio-Control CR2 electrodes can be used for both adults and children by means of the child button on the AED. When using the electrodes on a child, you should push the child button on the AED and position the electrodes on the chest and back of the child, as shown in the diagram below. Electrodes should always be placed such that they are not touching each other.

Placement of the electrodes
